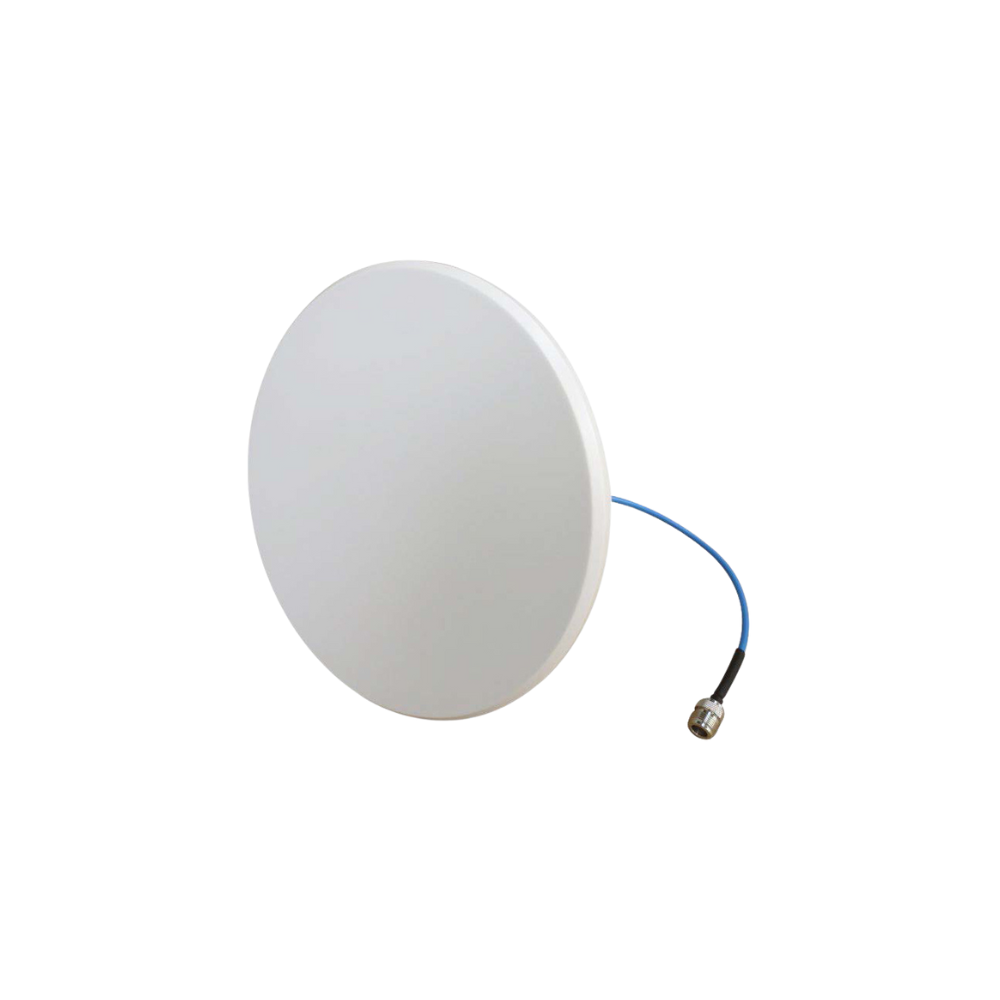

Multi-Band Omni Flat Ceiling Antenna
Our Multi-band Flat Omni is an easy to install accessory and it transmits signals in a 360 degrees radius. It is mostly designed to install in a suspended ceiling and it is proven to provide a wider signal coverage than the whip or panel antenna.
The Flat Omni antenna is compatible with all Irish Frequencies 3698–960 MHz | 1710–2700 MHz | 3300–3800 Mhz and also works with all our boosters and all Wifi frequencies.
It is easy to install and with its sophisticated looks, it can easily be installed in any property.
Please consult our technical/sales team if you need to add an extra antenna to your connections.
Product Specs Sheet
| Frequency Range | 698–960 MHz | 1710–2700 MHz | 3300–3800 MHz |
| Gain (dBi) | 3 | 4 | 5 |
| Horizontal Beamwidth (°) | 360 |
| Vertical Beamwidth (°) | 80 | 38 | 32 |
| VSWR | ≤1.5 |
| Input Impedance (Ω) | 50 |
| Polarization | V |
| Maximum Input Power (W) | 20 |
| Lightning Protection | DC ground |
| Connector | N-F |
| Antenna Dimension (mm) | φ170 × 17 |
| Weight (kg) | 0.3 |
| Storage Temperature (°C) | -25 ~ 35 (keep dry) |
| IP Rating | IP40 |
| RoHS | Compliance |
| Radome Material | ABS |
| Mounting Kit | Ceiling, via hole (standard) |
| Working Temperature (°C) | -55 ~ 60 |
