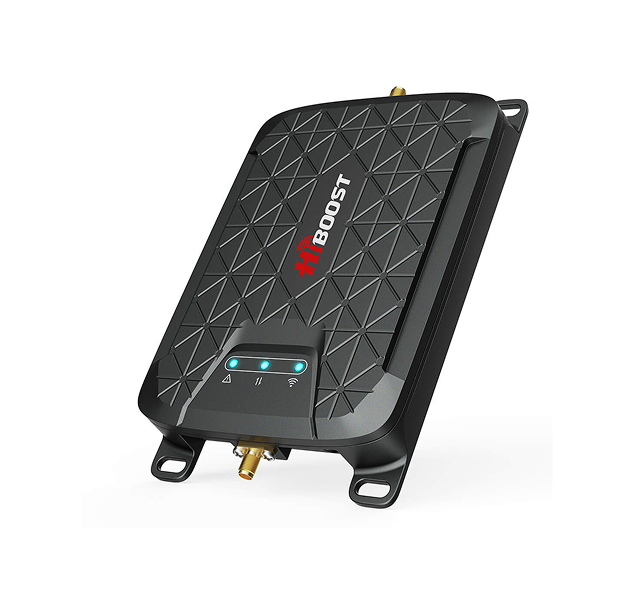

HiWay-5S is the ultimate vehicle and Yacht signal enhancer ever built. it is configured to improve signal for all Irish and European Networks transmitting on 800/900/1800/2100/2600 MHz frequencies in all types of vehicles stationary or in motion, yachts/ships sailing in the sea, mobile homes and cabins.
It covers any indoor area up to 500 square meters(open space area) and is guaranteed to supply great communication experience with clearer calls and higher mobile data speeds than ever. HiWay-5S auto-adjusts to best signal output within 1 minute of switching it on.
Key Features
- Networks: EGSM900+DCS/LTE1800+WCDMA2100+LTE800+LTE2600 MHz
- Coverage: up to 500 sqm
- Kit with outdoor directional antenna and cable
- Intelligent and informative LCD display
- Smart AGC & MGC functions
- Officially CE- and RoHS-certified
- 3 Year Warranty
- 15 Day Money Back assured
- 15-25 Simultaneous users

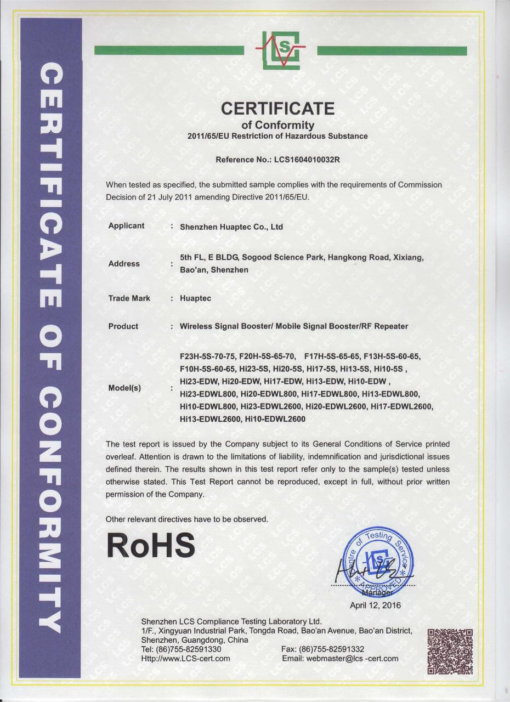

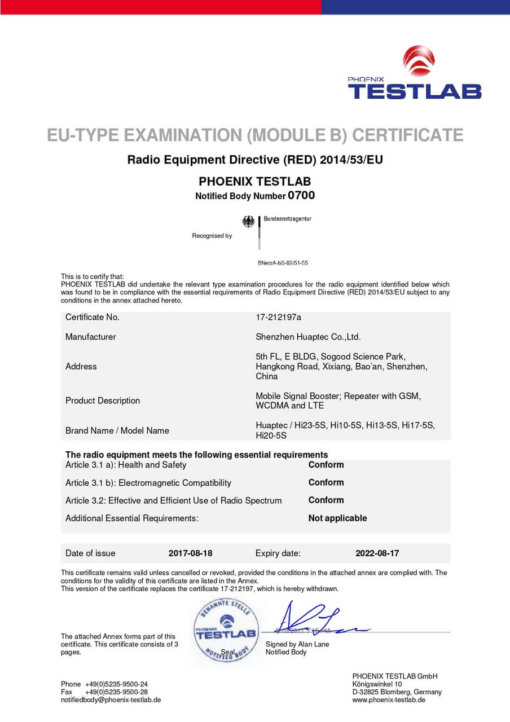

Certifications
All our Boosters are certified under the Irish, UK and EU safety Laws
PRODUCTS SPECIFCATIONS
| Coverage Area | 500 m² |
| Application | Home and Office Building |
| Network Type | Calls, 3G / UMTS, 4G / LTE |
| Frequency | 800 MHz (4G/LTE), 900 MHz (GSM/EGSM), 1800 MHz (DCS/LTE), 2100 MHz (3G/WCDMA), 2600 MHz (4G/LTE) |
| Frequency Range | 832~862MHz (Uplink) 791~821MHz (Downlink), 880~915MHz (Uplink) 925~960MHz (Downlink), 1710~1785MHz (Uplink) 1805~1880MHz (Downlink), 1920~1980MHz (Uplink) 2110~2170MHz (Downlink), 2500~2570MHz (Uplink) 2620~2690MHz (Downlink) |
| Number Of Bands | Five Band |
| Max. Gain | 55dB (Uplink) – 60dB (Downlink) |
| MGC (Step Attenuation) | ≥ 16dB / 1 dB step, dip switch control |
| Intelligent AGC (ALC / ISO) | ≥42 dB / ≥42 dB |
| Gain Flatness | Typical ≤5 dB (P-P) |
| Noise Figure @ Max. System Gain | Typical ≤5 dB |
| V.S.W.R | Typical ≤2 |
| Group Delay | ≤ 1 μs |
| Frequency Stability | ≤0.01 ppm |
| Power Supply | Input AC100~240V.50/60Hz, Output DC12V/7A |
| Power Consumption | ≤24W |
| Input & Output Impedance | 50 ohm |
| LCD Display | Frequency, Gain, Output Power, ALC, ISO, etc. |
| Indication LEDs | No |
| I /O Port Type | N-Female |
| Dimensions | 153 x 246 x 36mm/ 6 x 9.7 x 1.4inch |
| Booster Weight | 1.8 kg |
| Booster Weight with KIT | 5 kg |
| Operating Temperature | -10ºC~+55ºC |
| Storage Temperature | -10ºC~+80ºC |
| Relative Humidity | 5% – 95% |
| Barometric Pressure | 55 kPa -106 kPa |
| Environment Conditions | IP40 |
